[iOS] 상황별 app life cycle 메서드 호출 순서

@main
class AppDelegate: UIResponder, UIApplicationDelegate {

    var window: UIWindow?

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {

        window = UIWindow(frame: UIScreen.main.bounds)

        let vc = ViewController()
        let navVC = UINavigationController(rootViewController: vc)
        navVC.isNavigationBarHidden = true
        window?.rootViewController = navVC
        window?.makeKeyAndVisible()

        print("application didFinishLaunchingWithOptions")
        printState()
        return true
    }


    func application(_ application: UIApplication, didRegisterForRemoteNotificationsWithDeviceToken deviceToken: Data) {
        let tokenParts = deviceToken.map { data in String(format: "%02.2hhx", data) }
        let token = tokenParts.joined()
        //print("Device Token: \(token)")
    }

    func application(_ application: UIApplication, didFailToRegisterForRemoteNotificationsWithError error: Error) {
        print("Fail to register token \(error.localizedDescription)")
    }

    func applicationWillEnterForeground(_ application: UIApplication) {
        print("applicationWillEnterForeground")
        printState()
    }

    func applicationDidBecomeActive(_ application: UIApplication) {
        print("applicationDidBecomeActive")
        printState()
    }

    func applicationWillResignActive(_ application: UIApplication) {
        print("applicationWillResignActive")
        printState()
    }

    func applicationDidEnterBackground(_ application: UIApplication) {
        print("applicationDidEnterBackground")
        printState()
    }

    private func printState() {
        switch UIApplication.shared.applicationState {
        case .active:
            print("state: active")
        case .background:
            print("state: background")
        case .inactive:
            print("state: inactive")
        }
    }
}

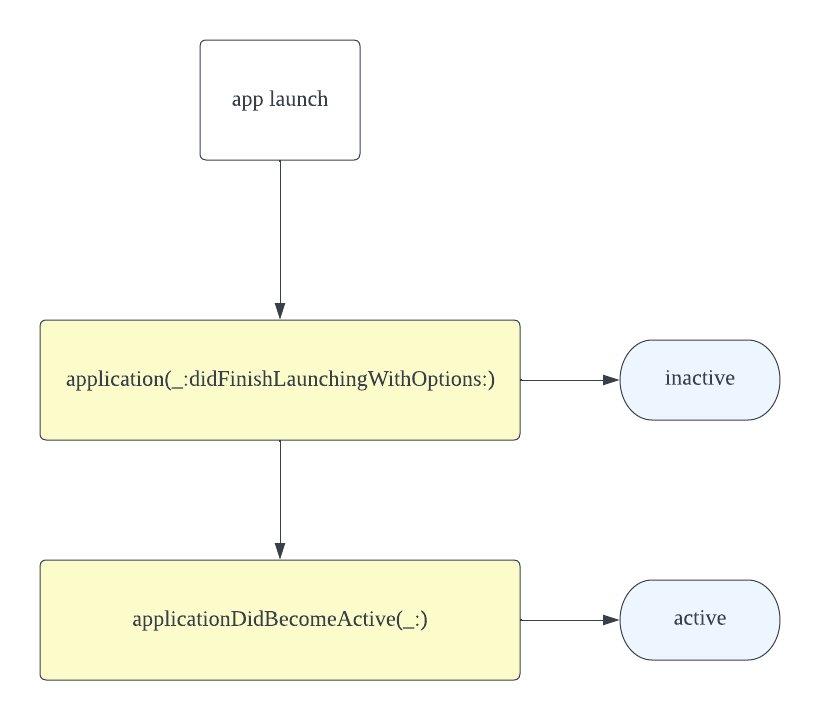

1. App Launch

• inactive -> active

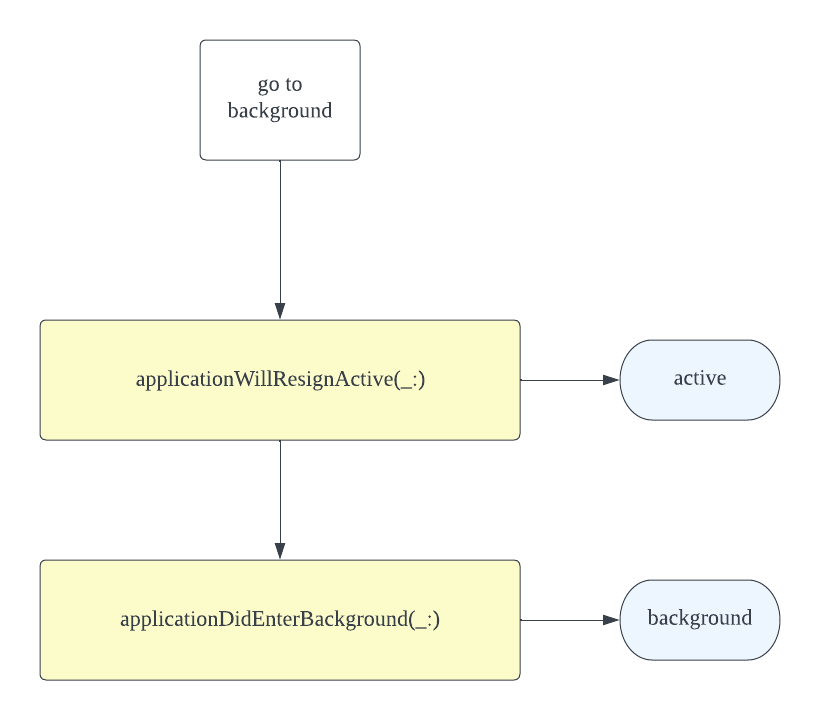

2. Foreground -> Background

• active -> inactive -> background

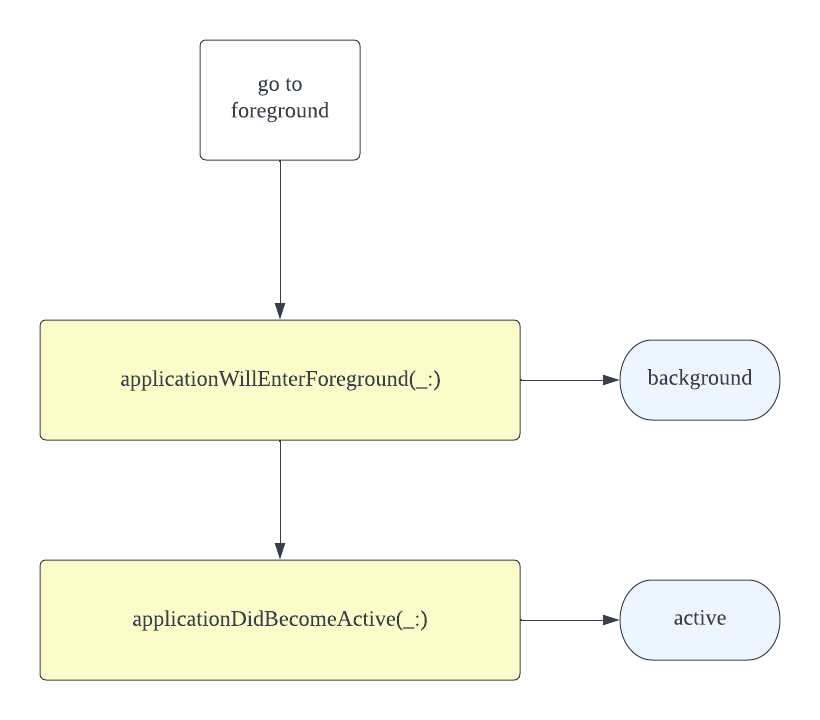

3. Background -> Foreground

• (suspended) -> background -> inactive -> active

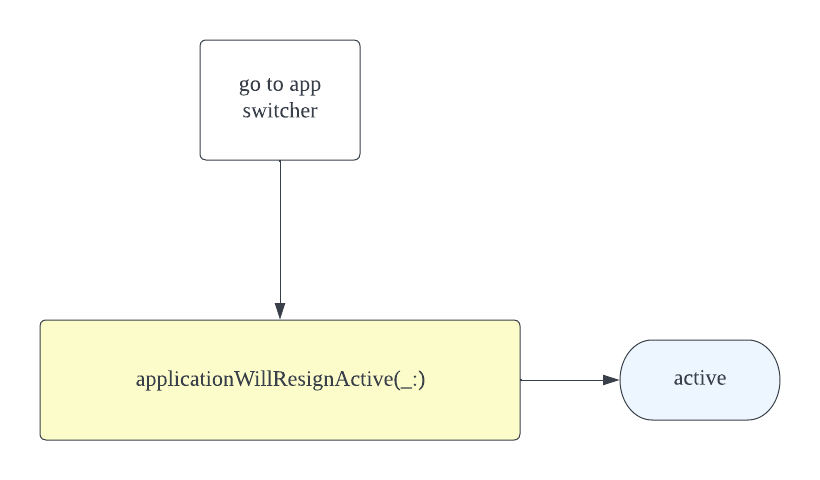

4. Go to App switcher

• active -> inactive

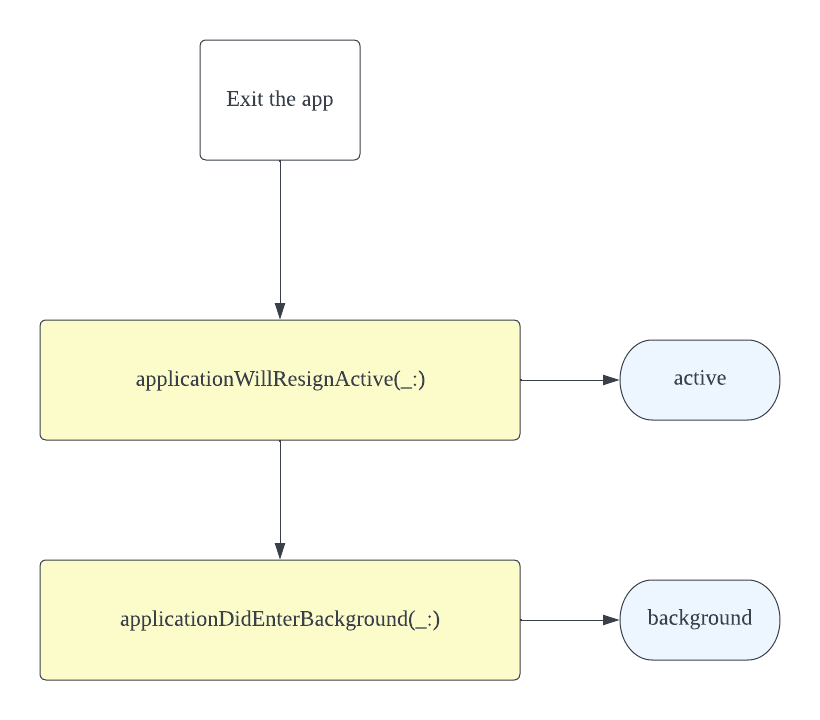

5. User exit the app by app switcher



• active -> inactive -> background -> not running
