[iOS Issue] Custom UIButton에서 inset 사용 시 Button title이 제대로 안 보이는 현상

by Sky Titan 2021. 1. 26.
728x90

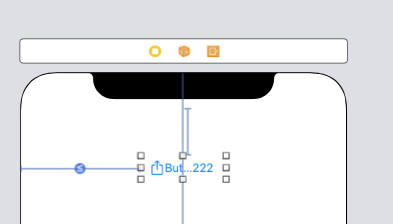

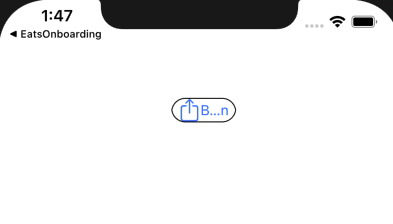

 rounded한 Custom Button을 사용해서 만들던 중, 내부 여백을 주기 위해 inset을 사용했는데 title이 ...으로 축약되면서 제대로 보이지 않는 현상이 생겼다.

  원인

  1. Button의 size를 결정할 수 있는 constraint을 주지 않음
  2. Button의 intrinsic size가 inset을 고려하지 않고 결정됨



해결

  1. 버튼의 크기가 유동적으로 변할 수 있게 leading에 less than 제약을 걸어준다.
  2. UIButton의 intrinsicContentSize 프로퍼티를 override해서 inset만큼 크기를 늘려준다.

import UIKit

class CustomButton: UIButton {

    required init?(coder: NSCoder) {
        super.init(coder: coder)

        setRoundedBorder()
    }

    private func setRoundedBorder() {
        layer.cornerRadius = 15
        layer.borderWidth = 1
        layer.borderColor = UIColor.black.cgColor
    }

    // When use titleEdgeInset, need to expand button size widely
    override var intrinsicContentSize: CGSize {
        return CGSize(width: super.intrinsicContentSize.width + contentEdgeInsets.left + contentEdgeInsets.right + titleEdgeInsets.left + titleEdgeInsets.right,
                      height: super.intrinsicContentSize.height + contentEdgeInsets.top + contentEdgeInsets.bottom + titleEdgeInsets.top
                        + titleEdgeInsets.bottom )
    }

}



결과
